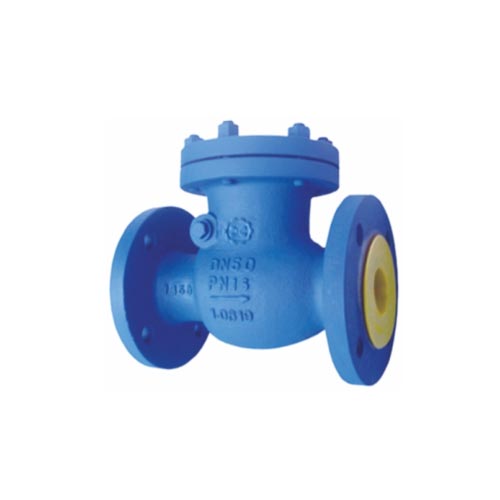

Silent check valve, also known as silent check valve silencing check valve. A silent check valve is an automatic valve that relies on the pressure of medium flow to open and close the valve disc. When the medium flows through the valve body, the valve disc is pushed open by the valve disc. Medium pressure, valve opens, medium flows through. When the medium stops flowing, the valve disc automatically closes due to pressure loss, blocking the medium backflow. The editor of Shanghai Engineering Valve told you that the purpose of silencing check valves is to prevent media backflow in water supply and drainage systems and high-rise building pipe network systems, prevent pump and drive motor reversal, and prevent reverse discharge of pump and drive motor. Container medium.

靜音止回閥特點：

Silent check valve features:

閥瓣設計仿照“子彈頭”，閥體設計仿照“腰鼓”，不僅改善了介質的流向，而且還降低了流體阻力和流阻系數。

The valve disc design imitates the "bullet head", while the valve body design imitates the "waist drum", which not only improves the flow direction of the medium, but also reduces the fluid resistance and flow resistance coefficient.

靜音止回閥體積小，價格低。結構短而緊湊，導軸與導架之間裝有非金屬潤滑套，提高了閥瓣運動的靈活性，不易產生鎖死現象，能有效消除因閥盤的影響。

The silent check valve has a small volume and low price. The structure is short and compact, with a non-metallic lubricating sleeve installed between the guide shaft and the guide frame, which improves the flexibility of valve disc movement and is not prone to locking, effectively eliminating the influence of the valve disc.

骨架橡膠密封圈鑲嵌在閥體上，避免了密封圈被介質直接沖刷，延長了密封圈的使用壽命。

The skeleton rubber sealing ring is embedded on the valve body, avoiding direct erosion of the sealing ring by the medium and extending the service life of the sealing ring.

閥瓣啟閉行程短，可防止水錘的發生。

The valve disc has a short opening and closing stroke, which can prevent the occurrence of water hammer.

消聲止回閥的應用領域一般安裝在合適的排水系統和高層建筑管網系統的泵出口處。此外，該閥門不適合在污水管網中安裝使用。

The application field of silencing check valves is generally installed at the pump outlet of suitable drainage systems and high-rise building pipeline systems. In addition, this valve is not suitable for installation and use in sewage pipelines.

靜音止回閥的維護與保養如下：

The maintenance and upkeep of the silent check valve are as follows:

貯運時啟閉件應在關閉裝置內，并同時做好以下工作：

During storage and transportation, the opening and closing parts should be inside the closing device, and the following work should be done simultaneously:

①靜音止回閥的翻板應固定在打開位置。

① The flap of the silent check valve should be fixed in the open position.

②內徑兩端的開口用泡沫板堵住，端口必須用悶蓋堵住，防止灰塵和生銹，保持通道清潔和端面平整；

② The openings at both ends of the inner diameter shall be blocked with foam plates, and the ports must be blocked with closed covers to prevent dust and rust, and to keep the channel clean and the end face flat;

③ 對筒體部分進行適當?shù)陌b保護防震防撞；

③ Properly package and protect the cylinder body from shock and collision;
